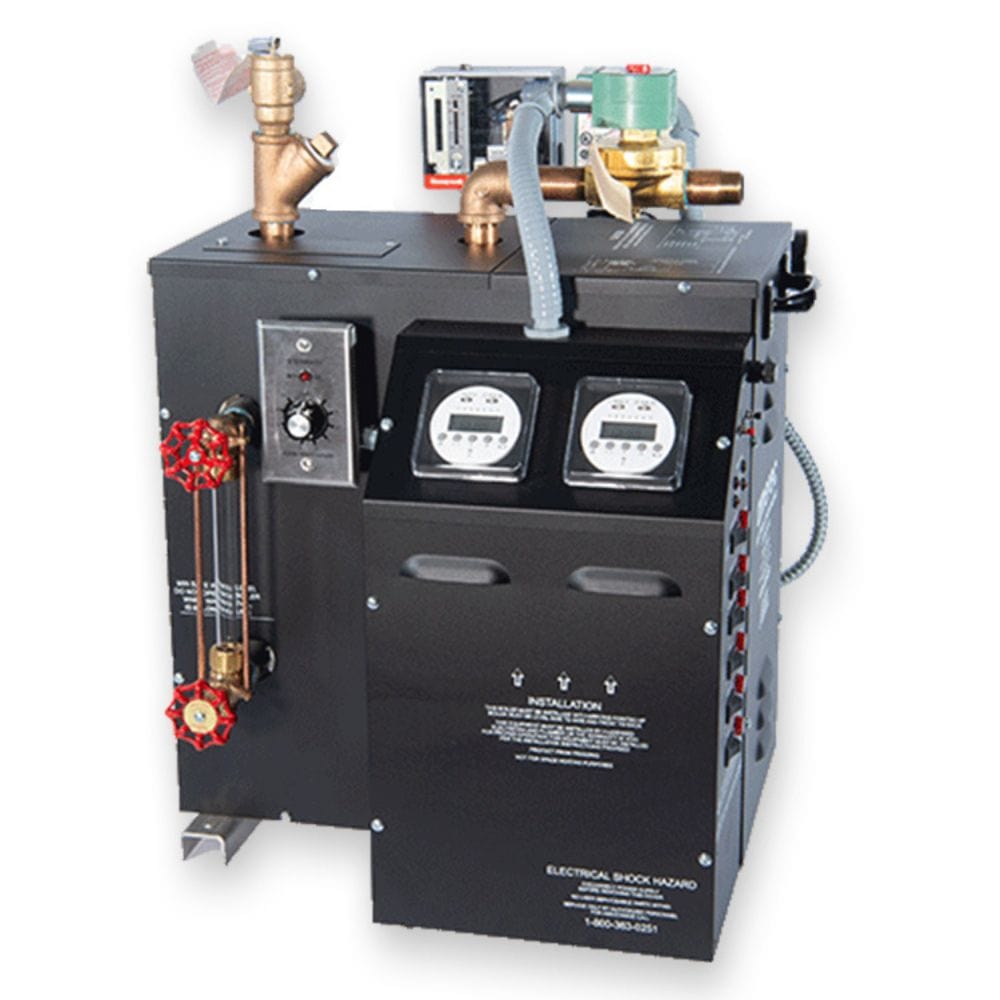

Amerec AI Series 24kW Commercial Steam Room Generator, 480V/3PH
The Amerec AI-24 electric steam room boiler features an ASME-certified pressure vessel for efficient operation, a water level sight glass, a temperature safety system, a 3-level water sensing system with low water cutoff, LED indicator lights with diagnostics, and a variety of other features. The AI-24 can power one or two large steam rooms with dimensions between 900 to 1,200 adjusted cubic feet (ACF).
We recommend using the available ADI Automatic Drain System with the AI-24 unit. The ADI Automatic Drain System automatically drains the generator tank after each use to prevent sludge and scale build-up.
Required control sold separately.
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel
Includes
- AI-24 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Specifications
- Minimum Adjusted Cubic Feet: 900
- Maximum Adjusted Cubic Feet: 1200
- Kilowatt Rating: 24 KW
- Amps: 29
- Water Supply Connection: 1/2" NPT
- Generator Steam Line Connection: 3/4" NPT
- Steam Head Connection: 3/4" NPT
- Drain Connection: 3/4" NPT
- Safety Relief Valve Connection: 3/4" NPT
- Safety Relief Valve: 15 PSIG
- Control "Rough In" Cut Out: 2-1/8" x 3-1/4"
- Control Sensor Cable: 25', 2 Conductor, 22 AWG, Shielded Cable
- Control Sensor "Rough In" Cut Out: 7/8" Diameter
- Generator Control Connection: 3 Position Terminal Block
- Generator Control Cable: 25', 3 Conductor, 22 AWG, Shielded Cable
- Width: 17-1/2"
- Depth: 20-3/4"
- Height: 23-1/4"
