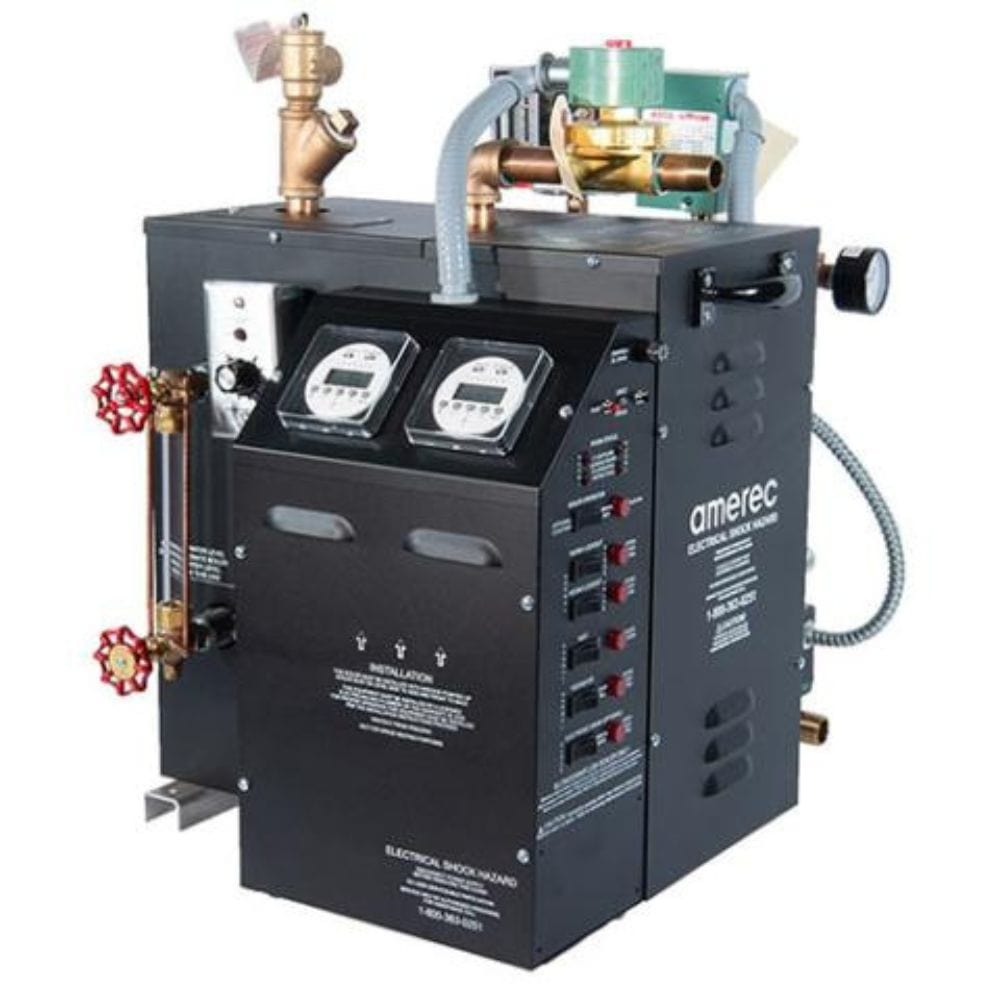

Amerec AI Series 30kW Commercial Steam Room Generator, 480V/3PH
The AI-30 unit features an ASME-certified pressure vessel for instant steam, durable electronic components, temperature safety system, water level sight glass, LED indicator lights with diagnostics, and a variety of other noteworthy features. This 30-kilowatt electric steam room boiler can power up to two large steam baths with dimensions up to 1,500 adjusted cubic feet (ACF).
We recommend the addition of the available ADI Automatic Drain System with your AI-30 unit. The ADI Automatic Drain System performs daily flushing of the generator tank to reduce build-up of solids such as scale and sludge.
Required control sold separately.
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel
Includes
- AI-30 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Specifications
- Minimum Adjusted Cubic Feet: 1200
- Maximum Adjusted Cubic Feet: 1500
- Kilowatt Rating: 30 KW
- Amps: 36
- Electrical Specifications: Electrical Chart
- Water Supply Connection: 1/2" NPT
- Generator Steam Line Connection: 3/4" NPT
- Steam Head Connection: 3/4" NPT
- Drain Connection: 3/4" NPT
- Safety Relief Valve Connection: 3/4" NPT
- Safety Relief Valve PSIG: 15 PSIG
- Control "Rough In" Cut Out: 2-1/8" x 3-1/4"
- Control Sensor Cable: 25', 2 Conductor, 22 AWG, Shielded Cable
- Control Sensor "Rough In" Cut Out: 7/8" Diameter
- Generator Control Connection: 3 Position Terminal Block
- Generator Control Cable: 25', 3 Conductor, 22 AWG, Shielded Cable
- Width: 17-1/2"
- Depth: 20-3/4"
- Height: 23-1/4"
