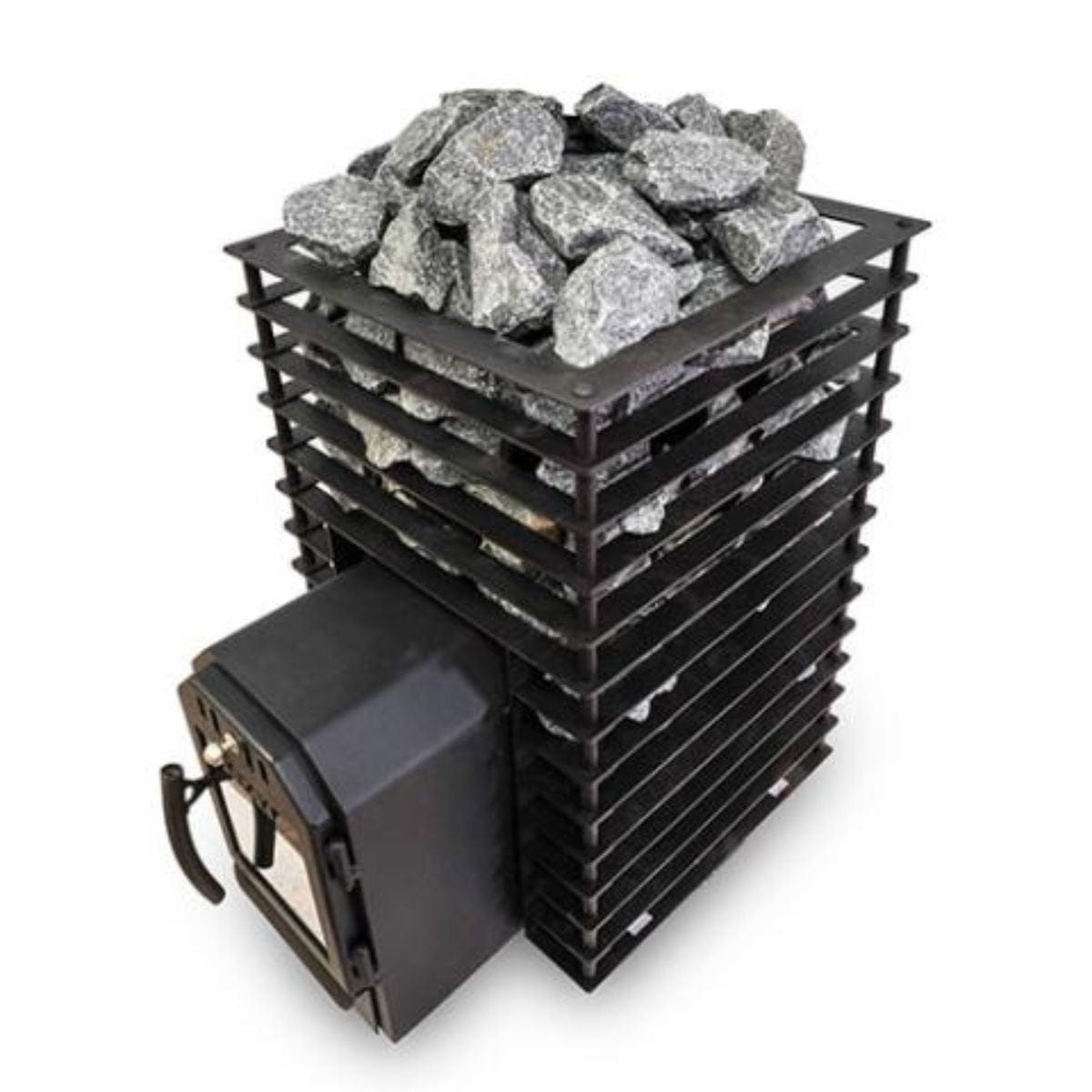

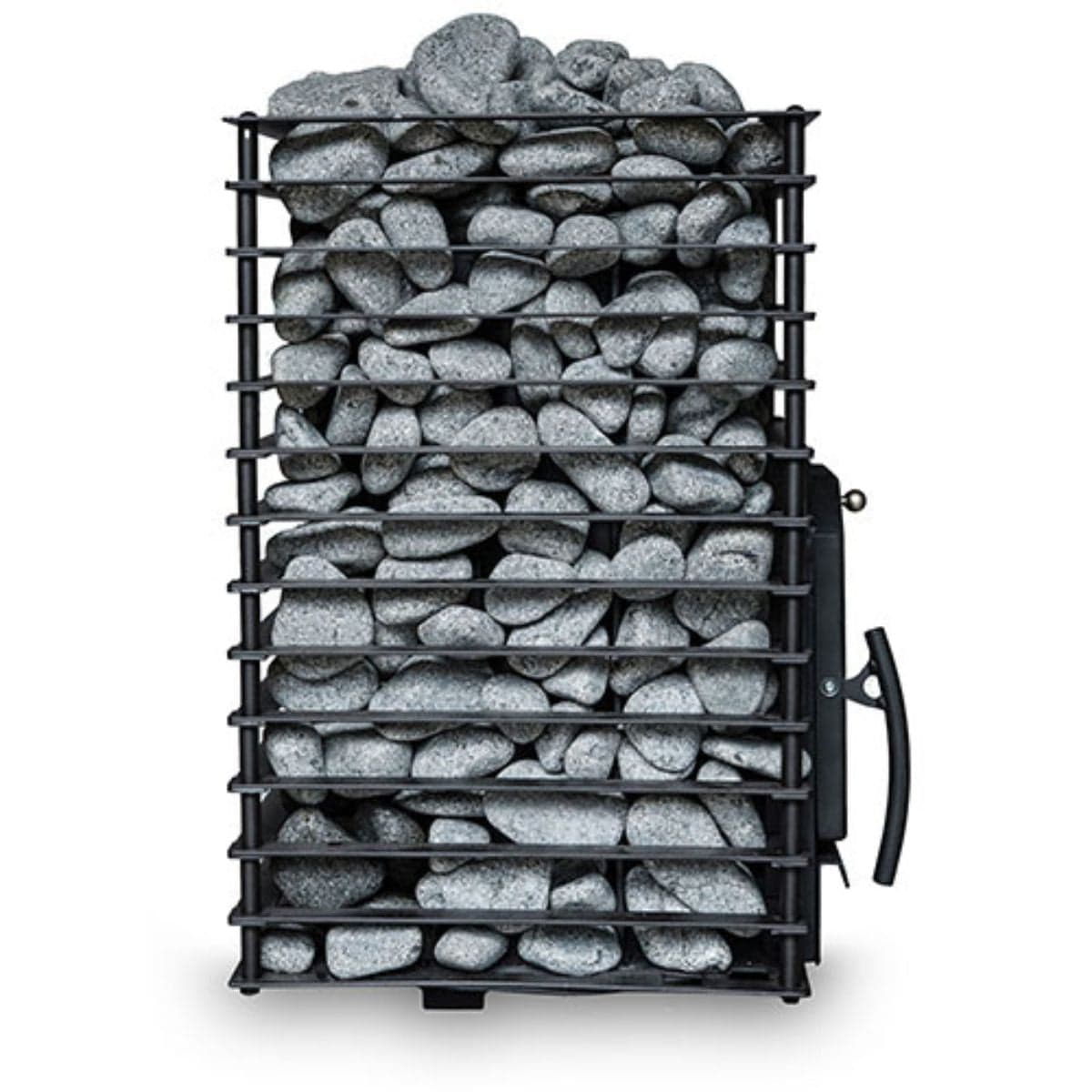

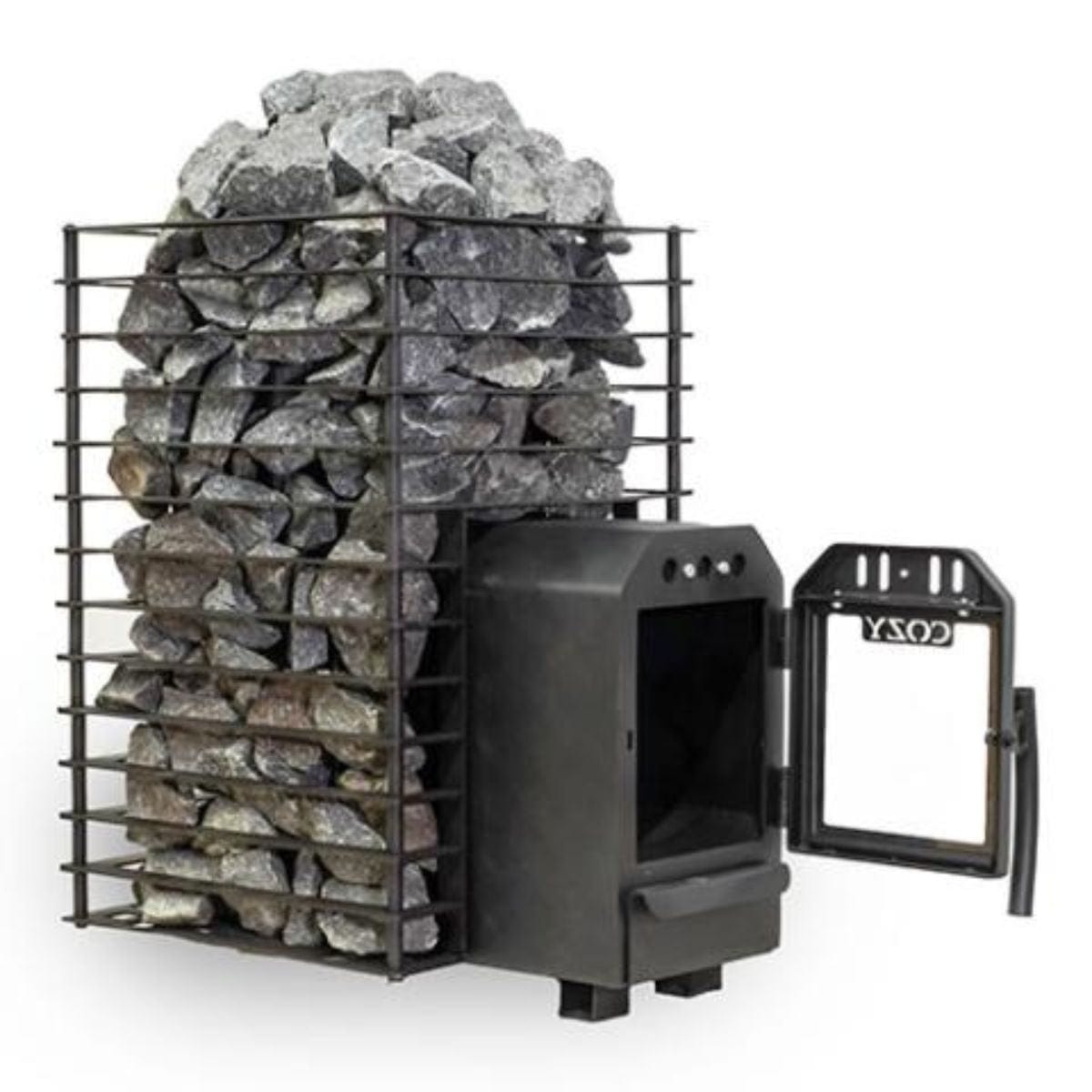

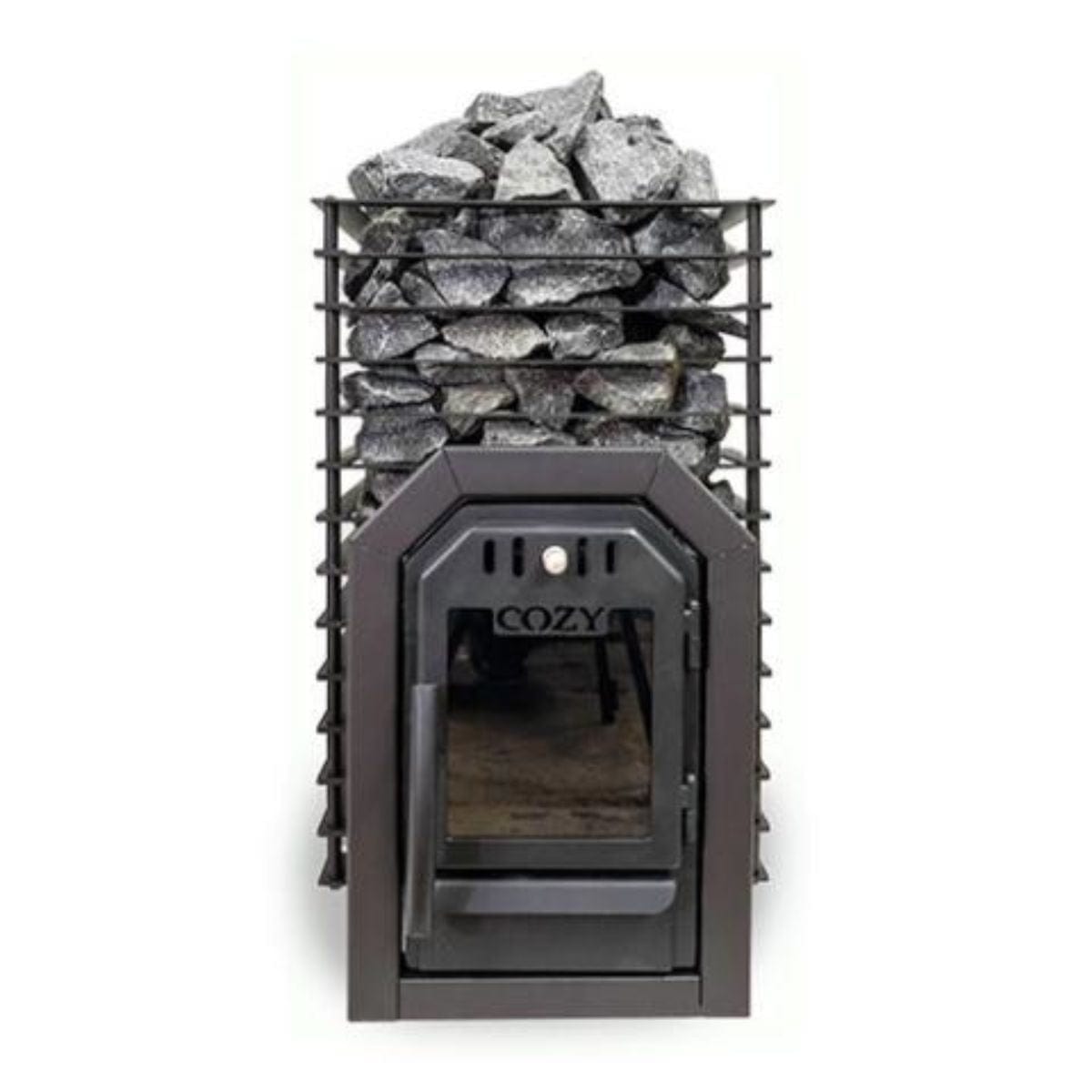

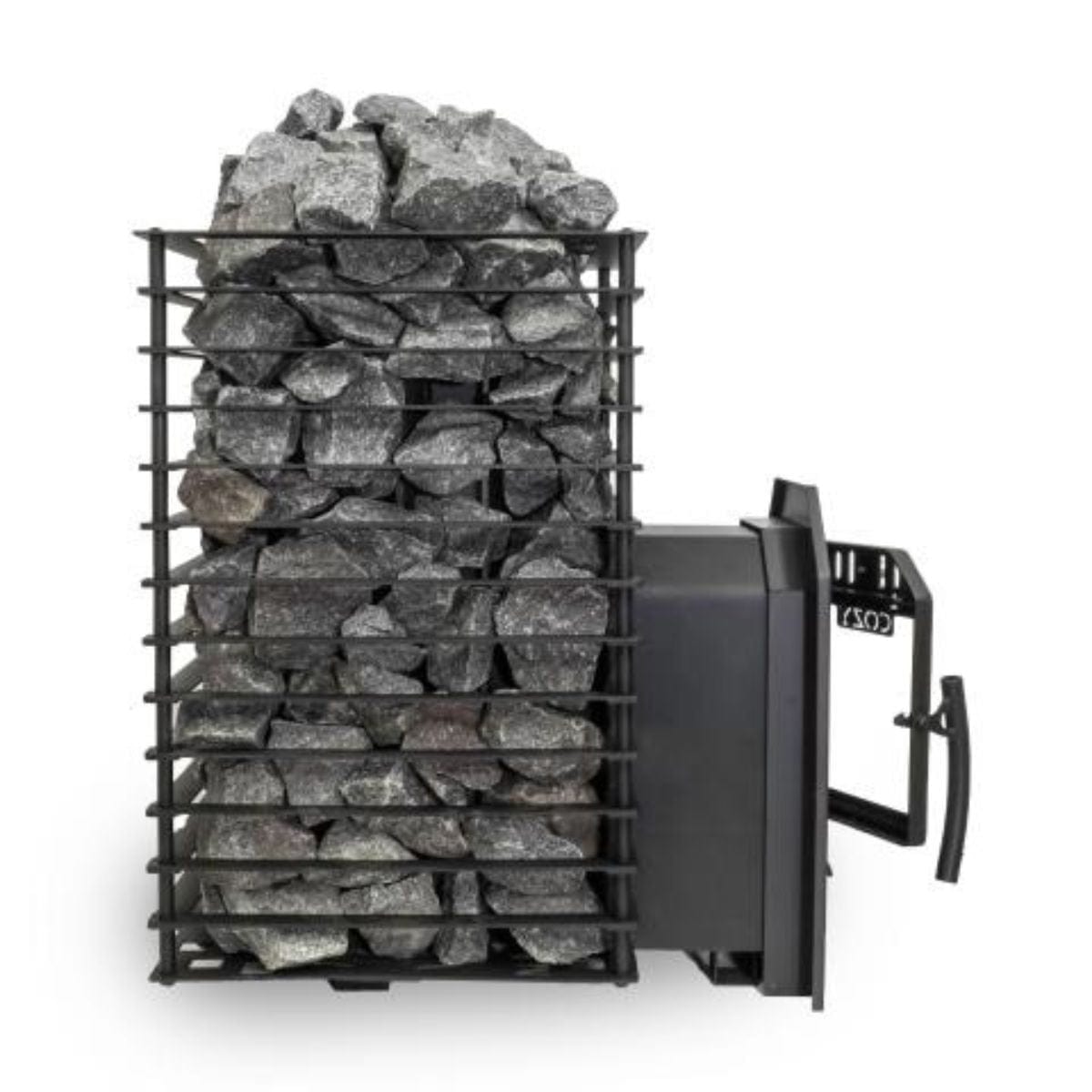

Cozy Heat 12kw Quattro Thru-Wall Wood Burning Sauna Stove



Cozy Heat 12kw Quattro Thru-Wall Wood Burning Sauna Stove

This unique "Through the Wall" wood-burning stove made in Estonia for smaller saunas. Wood-fired stoves are best for mild and long-lasting heat, designed for pouring water over hot stones to create your perfect amount of steam. Experience the timeless allure of wood-fired warmth and discover the true essence of relaxation with the Cozy Heat Quattro TW - where tradition meets innovation, and comfort knows no bounds.

The Quattro 12 TW's clean lines and minimalist design create an understated elegance, and the large viewing window allows you to view the mesmerizing glow of the dancing flames. Experience the timeless allure of a traditional wood-fired sauna and discover the true essence of relaxation with the Cozy Heat Quattro 12 TW.

Features

• Square design
• Wood-burning
• Steel Construction
• Smoke gases are 6x cleaner
• German BIMSCH certificate
• Stove utilizes 25%-40% less fuel than comparable sauna stoves
• Boasts minimal safety distances
• Mild and long-lasting heat
• Floor mount thru-wall
• Sauna room sizes: 12kW - 210 to 423 cu.ft.
• Stone Requirements: 12kW - minimum of 265lbs of stones

  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• 2-Year Warranty
• Designed and engineered in Estonia


Includes

• Outer frame of the heater
• Chimney pipe
• Heater body
• Cleaning hatch
• Heater door with glass
• Ash box
• Installation and operation manual
• 2-Year Warranty


Required for Operation: Split Faced OR Round Stones

Optional Accessories: WHP1000500M-PKG, WHP1000500-PKG, AC4000

Specifications

• Kilowatt Rating: 12kW
• Primary Fuel: Wood
• Maximum Firewood Length: 12.99" (329mm)
• Diameter of Firewood: 3.14" to 4.72" (80mm-120mm)
• Minimum Cubic Feet: 210 Cu. Ft.
• Maximum Cubic Feet: 423 Cu. Ft.
• Minimum Room Height: 72" (1828mm)
• Flue Connection Location: Top
• Heater Weight: 159 lbs
• Shipping Weight with Sauna Stones: 424 lbs
• Safety Distance Front to Back: 54.91" (1395mm)
• Safety Distance Left to Right: 32.87" (835mm)
• Stove Depth: 26.18" (665 mm)
• Stove Width: 17.32" (440 mm)
• Stove Height: 27.55" (700 mm)

Technical Info

Cozy Stove Installation and Operation Manual
