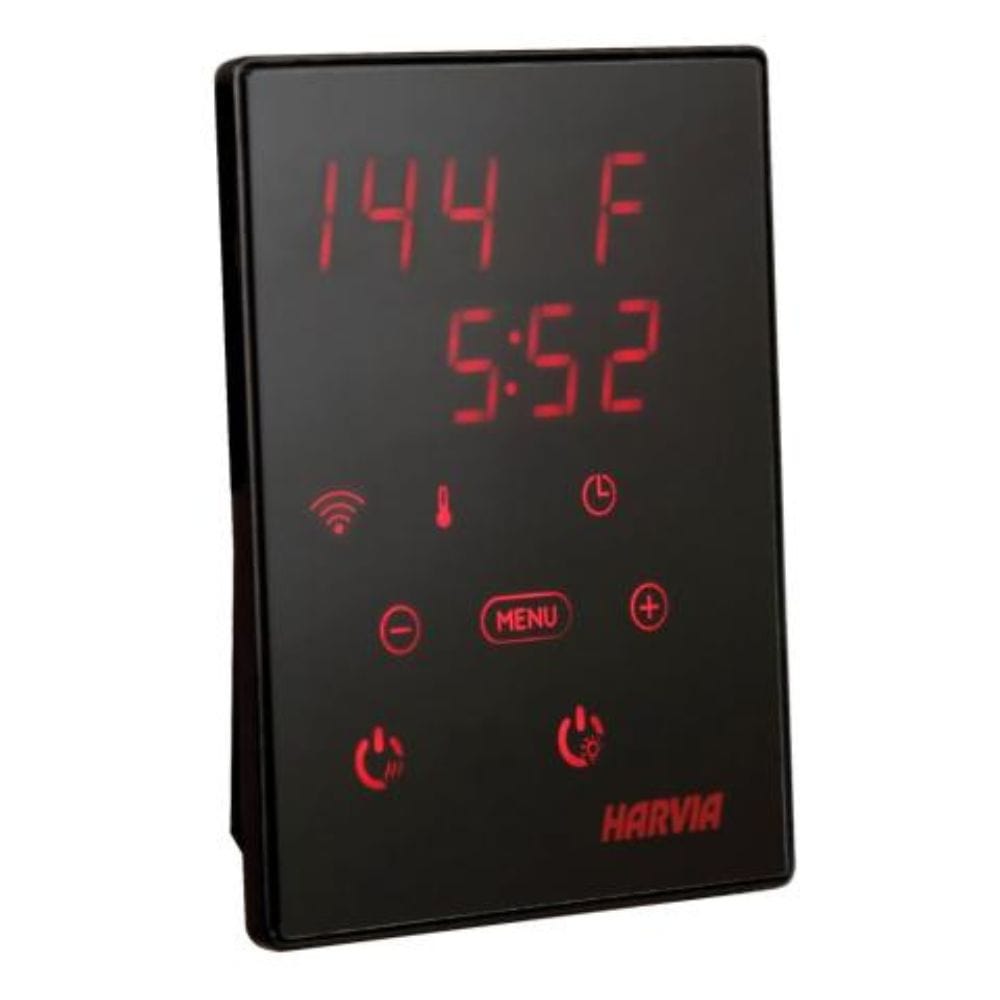

Harvia Xenio WiFi Remote Control Panel
This is an upgrade panel, not a complete control system. It replaces the control panel on an existing Harvia Xenio control unit and adds Wi-Fi, so you can start, stop, and adjust your sauna from your phone with the MyHarvia app. If you are buying a new control system, you do not need this — our Xenio CX170 and Xenio CX30 controls already include the Wi-Fi panel.
The Xenio WiFi panel installs easily in place of your old panel — surface-mounted or embedded into the wall, ideally near the sauna door. Start the sauna and adjust temperature from the illuminated buttons, or do it all from your phone. Follow your sauna's status on the digital display or in the MyHarvia app, and activate the door sensor for remote starting straight from the panel.
Compatible Xenio control units: CX170-U1, CX170-U3, CX30-U1-U3, CX45-U1-U3, CX30C-U1, CX30C-U3
Features
- Adds Wi-Fi and MyHarvia app control to an existing Xenio control system (control system sold separately)
- Direct replacement for the original Xenio control panel — easy retrofit
- Start, stop, schedule, and adjust temperature from your phone
- Illuminated buttons, clear digital display
- Surface or flush wall installation
Includes
- Digital Control Panel with Wi-Fi connectivity (panel only)
- Installation and Operation Material
Specifications
- Wi-Fi Frequency Band: 2.4 GHz
- Power Consumption: Peak 2W, average 600mW
- Supply: 12-24VDC
- Connection: 4-pin: +12VDC, GND, RS485 A+B
- Electrical Frequency: 50/60Hz
- Weight: 0.3 lbs
- Width: 3.34" (84mm)
- Depth: 0.9" (22mm)
- Height: 4.3" (109mm)
